High-Performance Optical Transceivers

Industry-leading solutions for AI/ML, Data Centers, and Telecommunications

Main Products

You Will Get High Quality SFP Module With Unbeatable Price. Our premium optical modules offer exceptional performance and reliability while maintaining competitive market rates. Experience superior connectivity solutions that deliver outstanding value without compromising on quality.

1.6T Transceiver

1.6T Transceiver

view
800G Transceiver

800G Transceiver

view
QSFP56/QSFP112/QSFP-DD Transceiver

QSFP56/QSFP112/QSFP-DD Transceiver

view
Fiber Channel Transceiver

Fiber Channel Transceiver

view
100G QSFP28 Transceiver

100G QSFP28 Transceiver

view
SFP, SFP28 & SFP56 Transceivers

SFP, SFP28 & SFP56 Transceivers

view

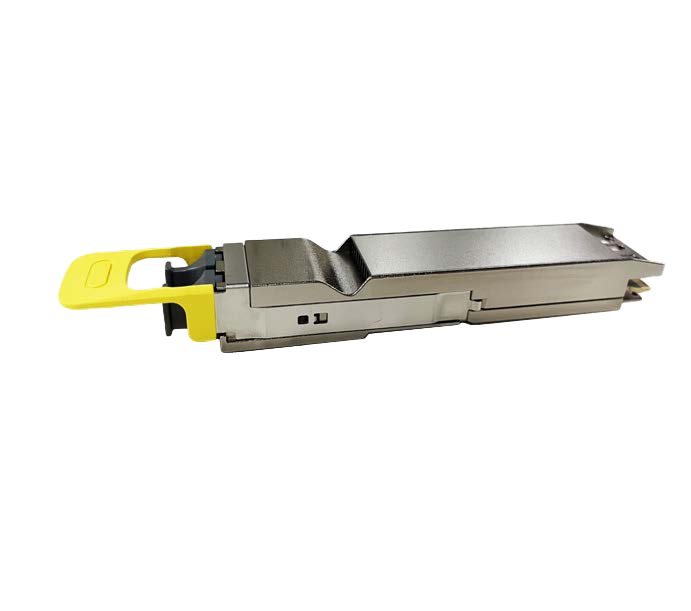

1.6T Transceiver

Application:

Support AI/ML, Datacom 1.6T Ethernet, IB application

Features:

  • Compliant with MSA, IEEE, OIF standards
  • 200G/lane electrical & Optical data rate
  • Support both Digital and Linear solution
  • Both transceiver and AOC products supported
1.6T Transceiver
Data Rate Package Amphenol Part Number Transmission Distance Optical Connector Type Fiber Type Technology Temperature range
1.6T OSFP224/2DR4 OP13B8-005D 500m Dual MPO12 Single-Mode EML/Silicon photonics + DSP C
1.6T OSFP224/2DR4/TRO OP13TB-005D 500m Dual MPO12 Single-Mode Silicon Photonics/TFLN + Tx retimer C
1.6T OSFP224/2DR4/LPO OP13LB-005D 500m Dual MPO12 Single-Mode Silicon Photonics/TFLN without DSP C
1.6T OSFP224/2DR4/LPO/AOC AOP13LB-XXX Variable fiber length Dual MPO12 Single-Mode Silicon Photonics/TFLN without DSP C

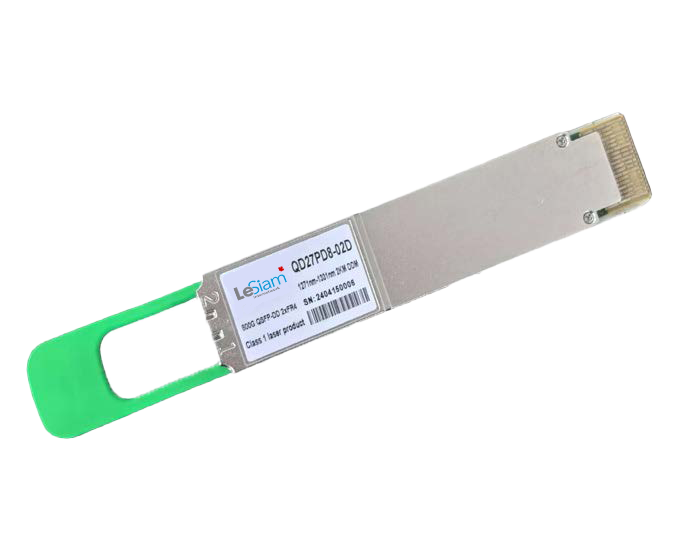

800G Transceiver

Application:

AI/MI, datacom 800G Ethernet and IB

Features:

  • Compliant with MSA, IEEE and OIF standards
  • Low power consumption design supported
  • Both Digital and linear solutions supported
800G Transceiver
Data Rate Package Amphenol Part Number Transmission Distance Optical Connector Type Fiber Type Technology Power Temperature range
800Gb/s QSFP-DD 2*FR4 QP27FD8-02D 2km Dual LC Single Mode EML+DSP 14W C
800Gb/s QSFP-DD 2*LR4 QP27FD8-10D 10km Dual LC Single Mode EML+DSP 14W C
800Gb/s QSFP 2*FR4 QP27FD8-02D 2km Dual LC Single Mode EML+DSP 14W C
800Gb/s QSFP 2*LR4 QP27FD8-10D 10km Dual LC Single Mode EML+DSP 14W C
800Gb/s QSFP LPO QP13LD8-02D 500m Dual MPO12 Single Mode Silicon Photonics without DSP 8W C
800Gb/s QSFP 2*DR4/2*DR4+ QP13PD8-02D 500m/2km Dual MPO12 Single Mode Silicon Photonics + DSP 14W C
800Gb/s QSFP 2*SR4 QP85PD8-02D 50m Dual MPO12 Multi Mode VCSEL+DSP 16W C
800Gb/s QSFP AOC-LPO AQP13LD8-XXX Variable fiber length Dual MPO12/MPO16 Single Mode Silicon Photonics without DSP 8W C
800Gb/s QSFP AOC AQP85PD8-XXX Variable fiber length Dual MPO12/MPO16 Multi Mode VCSEL+DSP 16W C

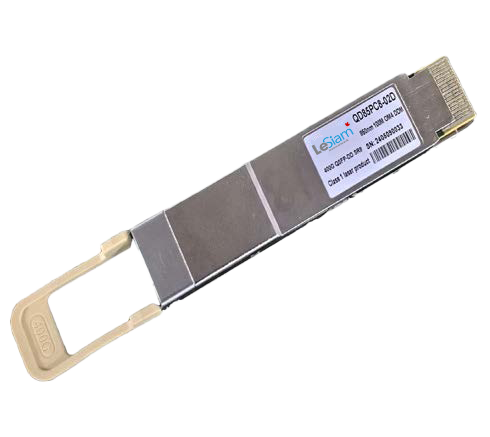

QSFP56/QSFP112/QSFP-DD Transceiver

Applications:

400G Ethernet, Datacenter and Cloud Networks

Features:

  • Compliant with IEEE802.3bs standard
  • Compliant with QSFP-DD MSA HW
  • Compliant to IEEE 802.3cu-2021
  • Compliant to CMIS 5.0
QSFP Transceiver
Data Rate Description Amphenol Part Number Wavelength Transmission Distance Tx output (dBm) Power Interface Temperature range
200Gb/s 200G QSFP56 SR4 QXP85PC4-02D 850nm 100m -5.5~4.0 4.5W MPO12 C-temp
200Gb/s 200G QSFP56 SR4 AOC AQP85PC4-XXX 850nm Variable fiber length - 4.5W - C-temp
400Gb/s 400G QSFP-DD SR8 QD85PC8-02D 850nm 100m -6.0~4.0 9W MPO16 C-temp
400Gb/s 400G QSFP-DD SR8 AOC AQD85PC8-XXX 850nm Variable fiber length -6.0~4.0 9W MPO16 C-temp
400Gb/s 400G QSFP-DD SR4 QD85PD4-02D 850nm 50m -4.6~4.0 8W MPO12 C-temp
400Gb/s 400G QSFP112 SR4 QXP85PD4-02D 850nm 50m -4.6~4.0 9W MPO12 C-temp
400Gb/s 400G QSFP-DD SR4 AOC AQD85PD4-XXX 850nm Variable fiber length - 8W - C-temp
400Gb/s 400G QSFP112 SR4 AOC AQRD5PD4-XXX 850nm Variable fiber length - 9W - C-temp
400Gb/s 400G QSFP-DD DR4/DR+ QD13PD4-02D 1310nm 500m/2km -3.1~4.0 8W MPO12 C-temp
400Gb/s 400G QSFP112 DR4/DR+ QXP13PD4-02D 1310nm 500m/2km -3.1~4.0 9W MPO12 C-temp

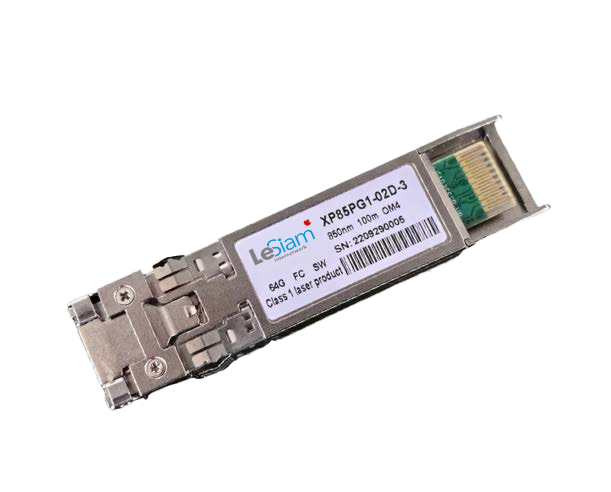

Fiber Channel Transceiver

Applications:

Support 8G/16G/32G/64G /128G Fiber Channel datarate

Features:

Compliant with MSA,FC

Fiber Channel Transceiver
Data Rate Description Amphenol Part Number Wavelength Transmission Distance Tx output (dBm) Power Interface Temperature Range
16Gb/s SFP+ SR XP-85G6-02D-3 850nm 100m -7.8~0 1W LC C
32Gb/s SFP28 SR XP-85B1-02D-5 850nm 100m -8.3~-2 1W LC C
32Gb/s SFP28 LR XP-13B1-10D-5 1310nm 10km -5~2 1.5W LC C/E
64Gb/s SFP56 SR XP85PG1-02D 850nm 100m -7.5~-4 1.5W LC C/E
64Gb/s SFP56 LR XP13PG1-10D 1310nm 10km -4.5~4.2 2W LC C/E
128Gb/s SFP112 SR XP85PH1-02D 850nm 100m -4.6~-4 2W LC C/E
128Gb/s SFP112 LR XP13PH1-10D 1310nm 10km -1.3~-4.8 2.5W LC C/E

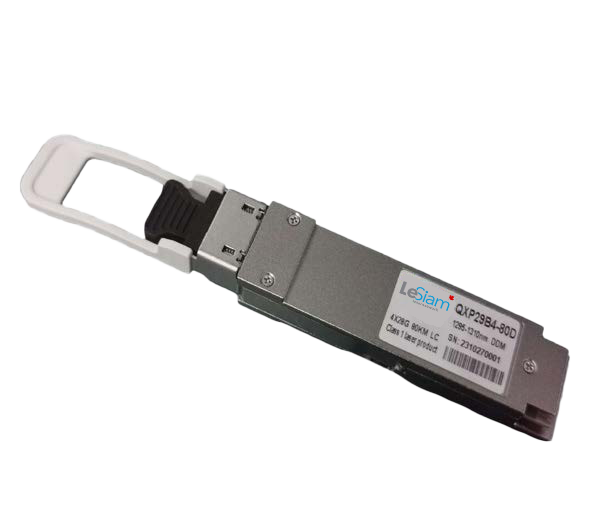

100G QSFP28 Transceiver

Applications:

DATACOM 100G Ethernet, TELECOM OTU3 and OTU4, Wireless 5G

Features:

  • Compliant with QSFP28 MSA
  • Four channel full duplex transceiver
  • Maximum linklength of 150m links on OM4 MMF, and 80km links on SMF
  • Temperature range -40° to 85°
100G QSFP28 Transceiver
Data Rate Description Amphenol Part Number Wavelength Transmission Distance Tx output (dBm) RX Sensitivity (dBm) Power Interface Temperature Range
100Gb/s QSFP28 AOC AQP85B4-XXX 850nm 150m / / 2.5W / C
100Gb/s QSFP28 SR4 QXP85B4-02D 850nm 150m -8.4~2.4 -10.3 3W MPO C
100Gb/s QSFP28 LR4 QXP28B4-10D(A) LAN WDM 10km -4.3~4.5 -10.6 3.5W LC C/I
100Gb/s QSFP28 ER4 LITE QXP28B4-30D(A) LAN WDM 30km -2.5~4.5 -18.5 4W LC C/I
100Gb/s QSFP28 ER4 QXP28B4-40D(A) LAN WDM 40km -2.0~2.9 -21.4 5.5W LC C/I
100Gb/s QSFP28 ZR4 QXP28B4-80D(A) LAN WDM 80km 1~6.5 -27 6.5W LC C/I

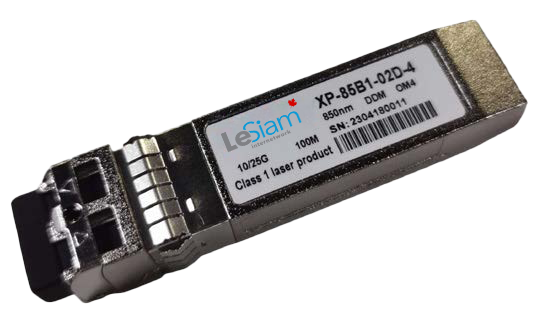

SFP, SFP28 & SFP56 Transceivers

Applications:

DATACOM 10G/25G/50G Ethernet, Fibre Channel, TELECOM Wireless/5G

Features:

  • Compliant with SFP+ MSA, SFF-8431, SFF-8472
  • Metal enclosure for lower EMI
  • Distances from short links up to 100km
SFP Transceiver
Data Rate Description Amphenol Part Number Wavelength Transmission Distance Tx output (dBm) Power Interface Temperature range
10Gb/s 10G SFP+ ER XP-1596-40DA 1550nm 40km -1.0~3.0 1.8W LC C/I-temp
10Gb/s 10G SFP+ ZR XP-1596-80DA 1550nm 80km -1.0~4.0 1.8W LC C/I-temp
10Gb/s 10G SFP+ CWDM 2R XP-Cwxx-80DA 1470~1610nm 80km -1.0~4.0 1.8W LC C/I-temp
10Gb/s 10G SFP+ DWDM 2R XP-Dwxx-80DA 1529.5~1561.4nm 80km -1.0~4.0 1.8W LC C/I-temp
10Gb/s 10G SFP+ BIDI 2R XPBL-XXXXX98-80DA 1490/1550nm 80km -1.0~3.0 1.8W LC C/I-temp
10Gb/s 10G SFP+ tunable 2R XGXP-DWT96-80DA 1529.5~1568.3nm 80km -1.0~3.0 2.5W LC C/I-temp
25Gb/s 25G SFP28 SR XP-85B1-02D 850nm 100m -8.1~2.4 1.0W LC C/I-temp
25Gb/s 25G SFP28 AOC AXP85B1-XXX 850nm Variable fiber length - 1.0W - C/I-temp
25Gb/s 25G SFP28 LR XP-13B1-10DA 1310nm 10km -5.0~2.0 1.2W LC C/I-temp
25Gb/s 25G SFP28 ER XP-13B1-40DA 1310nm 40km -1.6~6.0 1.8W LC C/I-temp
25Gb/s 25G SFP28 BIDI ER XPBL-XXXXB1-40DA 1270/1310nm 40km -3.0~6.0 2.0W LC C/I-temp
50Gb/s 50G SFP56 SR XP85PC1-02D 850nm 100m -6.5~4.0 1.5W LC C/E-temp
